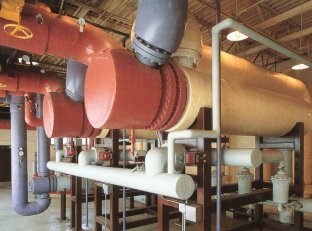

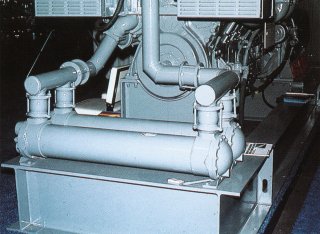

Operating Temperatures (Tubeside)

375�F maximum operating temperature 4" to 26" cast iron or fabricated heads
Operating Pressures (Shellside)

150 psig working pressure carbon steel construction (All sizes)
Operating Temperatures (Shellside)

375�F maximum operating temperature carbon steel construction (All sizes)

STANDARD FEATURES
Type

Steam to Water (2 or 4 Pass)

Water to Water (2 or 4 Pass)
Sizes

4" to 26" diameter

2' to 10' length
Materials (Tubeside)

Heads 4" to 20" cast iron, 22" to 26" fabricated steel

Tube sheets 4" to 26" carbon steel

Tubing 3/4" copper .035 wall thickness

Steel baffles
Materials (Shellside)

Carbon steel pipe with ANSI flanges Operating Pressures (Tubeside)

150 psig working pressure 4" to 12" diameter with cast iron head

125 psig working pressure 10" to 12" diameter with 2 pass 4" NPT cast iron head

125 psig working pressure 14" to 20" diameter with cast iron head

150 psig working pressure 20" to 26" diameter with fabricated

OPTIONAL FEATURES MATERIALS Heads

Cast bronze 4:" to 10" (2 or 4 Pass)

Cast stainless steel 4" to 10" (2 or 4 Pass)

Fabricated 300 series stainless steel 12" to 20" (2 or 4 Pass)

Fabricated steel 4" to 20" (2 or 4 Pass)
Tubesheets

Brass plate 4" to 18" (2 or 4 Pass)

Type 304 stainless steel 4" to 20" (2 or 4 Pass)

Type 316 stainless steel 4" to 20" (2 or 4 Pass)
Baffles

Brass 4" to 20"

Class 300 stainless steel 4" to 20"
Shell

Series 300 stainless steel
OPERATING PRESSURE and TEMPERATURE Heads

4" - 8" Billet head (2 or 4 Pass) 400 psig @ 400�F

10" - 16" Bonnet head (2 to 4 Pass) 400 psig @ 400�F

18" - 26" Bonnet head (2 to 4 Pass) 300 psig @ 400�F

Shells

4" to 16" Water to Water 400 psig @ 400�F

18" to 26" Water to Water 300 psig @ 400�F
